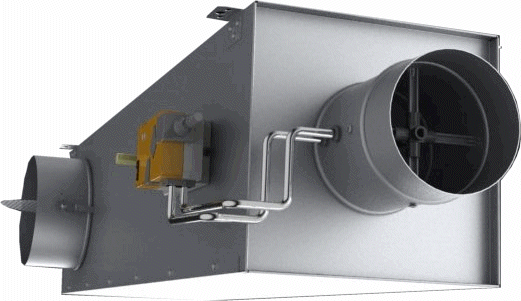

Variable air volume terminal unit, KOOLAIR, model KS/KSL, lenght dimension 610 / 1360 mm respectevily. Casing made in galvanised steel sheet, insulated thermo-acoustically with 30 mm fiber glass and black glass film. Equipped by control volume damper, diferential pressure cross sensor and regulator-actuator motor, model to be advise.
Material inside thermoacoustic high strength, not harmful to the health, prevents the cultivation of microorganisms and fire reaction classification A2-s1, d0 according to EN 13501-1.
Can be equipped LPHW or Reheat batteery, multiple outlets plenum box. Specially designed for installation in height limited false ceilings. Each valid both for supply or return air (KS-R).
